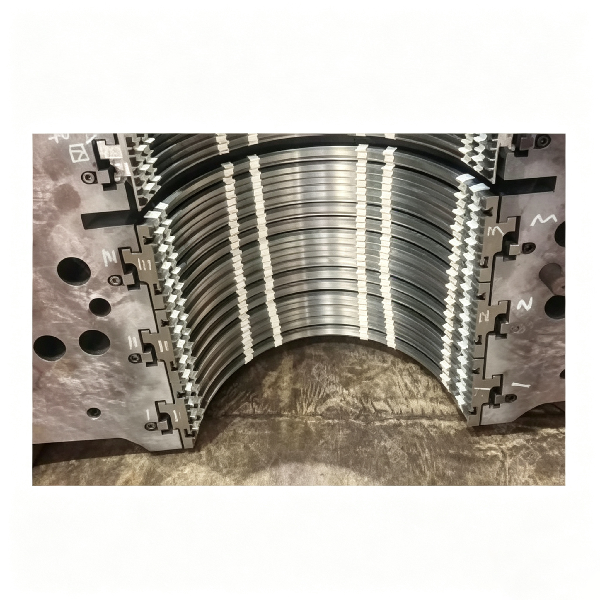

The Vortex Side-Tooth Steam Seal features a vortex chamber on the steam seal body. Small teeth are machined inside the vortex chamber. The high teeth on the steam seal ring are machined as side teeth, while the low teeth are machined as inclined turbulence teeth. High-temperature, high-pressure steam enters the first vortex chamber, where a large vortex is formed. The vortex steam collides with the straight-flow steam entering the steam seal, thereby weakening the kinetic energy of the straight-flow steam and achieving effective sealing performance. After passing through the first vortex chamber, the steam flows through the inclined turbulence teeth and side teeth. Due to the fact that the frictional resistance of the side teeth and inclined turbulence teeth is greater than that of conventional labyrinth teeth, the kinetic energy of the steam is further reduced through the frictional resistance effect. The steam that has passed through the side teeth and inclined turbulence teeth then enters the final vortex chamber, where a large vortex is formed. The vortex steam continues to collide with the straight-flow steam, further weakening its kinetic energy and providing the final sealing function.

Advantages

• The vortex side-tooth steam seal ensures safe operation of the equipment and causes absolutely no harm to the rotating shaft, such asradial or axial wear, friction overheating, start-up vibration, or abnormal noise.
• By means of vortex effect and frictional resistance effect, thevortex side-tooth steam seal effectively weakens the kinetic energy of the steam, reduces its flow velocity, and achieves excellent sealing performance.
• Compared with existing steam seals, the vortex side-tooth steam seal improves sealing efficiency by5% to 8% or more.
• Thevortex side-tooth steam seal ensures that the original equipment is not adversely affected in any way during static commissioning and operation.
• The vortex side-tooth steam seal offers high reliability. With no redundant components, it eliminates the risk of part detachment during operation.
• The vortex side-tooth steam seal achieves sealing through vortex effect and frictional resistance effect rather than simply relying on the sealing clearance. This simple and reliable design effectively prevents the phenomenon in which, after prolonged operation, the seal wears out, the sealing clearance becomes excessively large, and the sealing function is lost.

Application Range
Various types of steam turbine shaft end seals, balance piston seals, and diaphragm seals.
